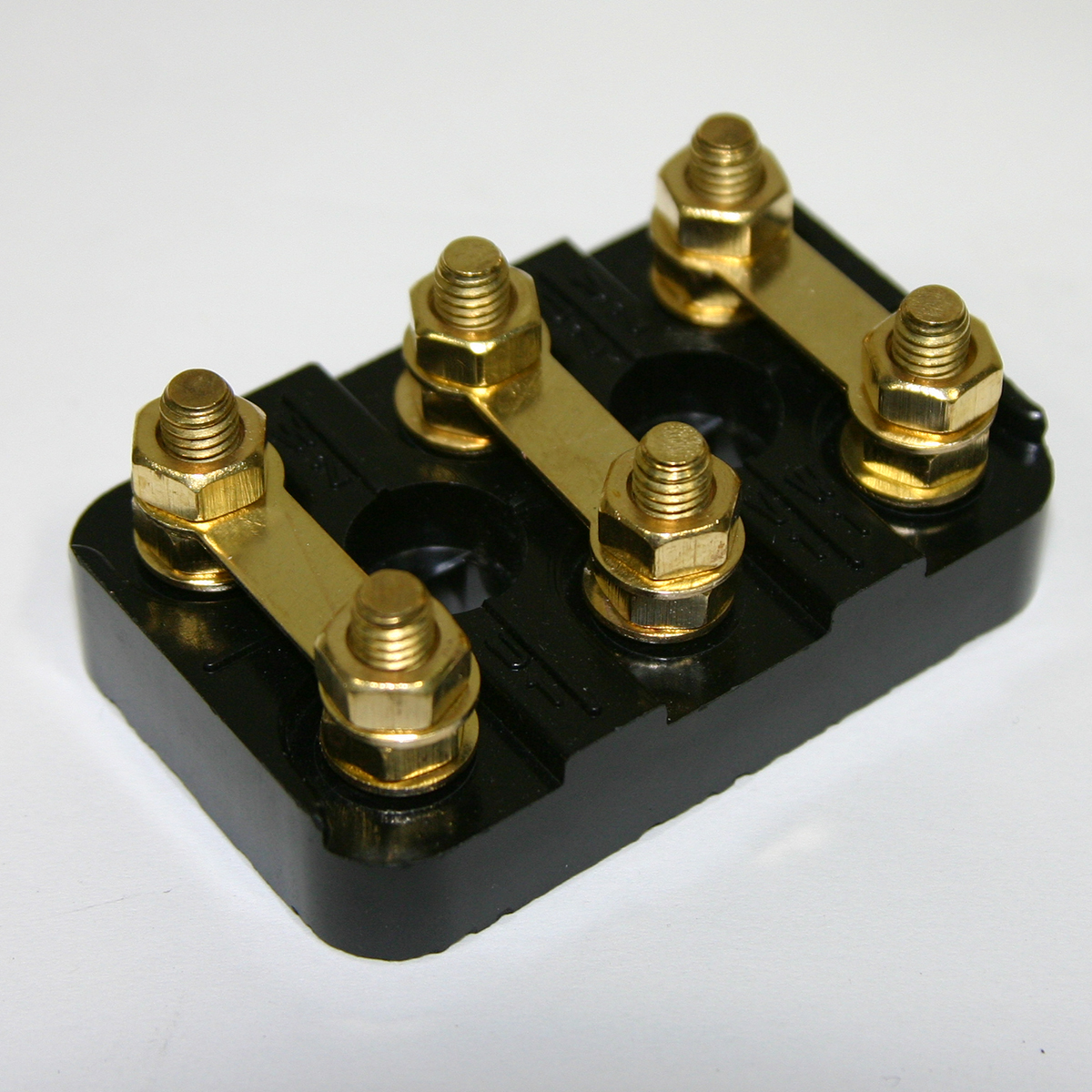

Terminal Blocks

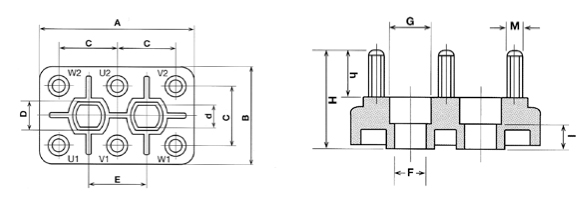

Part No. |
A |
B |
C |
D |
d |
E |
F |
G |
H |
h |
I |
M |
Price |
| TB-3 | 40 | 25 | 15 | 8.5 | 4 | 12-18 | 7.0 | 8.5 | 20 | 10 | 5 | M4 | $9.45 |
| TB-4 | 50 | 32 | 18 | 9.5 | 5.5 | 15-21 | 6.0 | 9.5 | 22 | 12 | 6 | M4 | $10.66 |
| TB-5 | 56 | 36 | 20 | 9.5 | 5.5 | 16-23 | 7.5 | 11.5 | 27 | 15 | 8 | M5 | $11.71 |
| TB-6 | 70 | 45 | 25 | 10.5 | 6.5 | 23-28 | 9.5 | 13.0 | 31 | 16 | 9 | M6 | $20.23 |
| TB-7 | 82 | 52 | 30 | 11.0 | 6.5 | 25-34 | 10.0 | 15.0 | 42 | 23 | 15 | M8 | $29.40 |
| TB-8 | 95 | 60 | 35 | 16.0 | 7.5 | 29-39 | 12.0 | 19.0 | 47 | 23 | 14 | M8 | $45.94 |
| TB-10 | 115 | 70 | 45 | 16.0 | 10.0 | 40-47 | 14.0 | 19.0 | 50 | 28 | 14 | M10 | $85.31 |
| TB-12 | 125 | 80 | 45 | 16.0 | 11.0 | 40-49 | 15.0 | 21.0 | 58 | 32 | 15 | M12 | $135.19 |
| TB-14 | 145 | 90 | 54 | 24.0 | 14.0 | 45-61 | 22.0 | 32.0 | 67 | 36 | 17 | M14 | $166.16 |
| TB-16 | 165 | 100 | 62 | 23.0 | 13.0 | 52-74 | 23.0 | 30.0 | 78 | 40 | 28 | M16 | $204.75 |
| TB-20 | 240 | 150 | 90 | 30.0 | 17.0 | 84-95 | 22.0 | 35.0 | 105 | 56 | 32 | M20 | $417.90 |
Contact us for stock on our 9 Pin Terminal Blocks email:info@jrelectricmotorrepair.com
